Ubiquiti UniFi U7 Pro WiFi 7 Access Point, with 6 GHz Support, 140 m (1,500 ft) coverage,300+ connected devices, Powered using PoE+, 2.5 GbE uplink

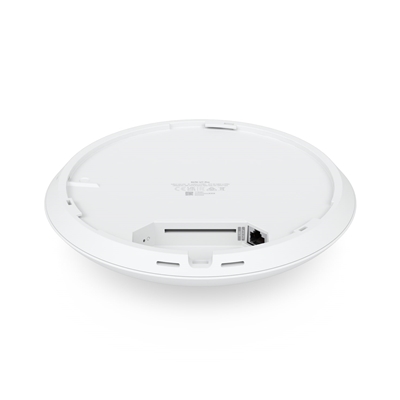

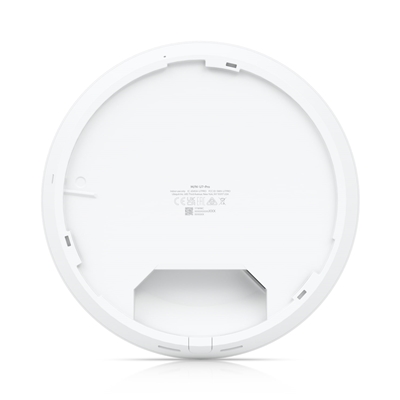

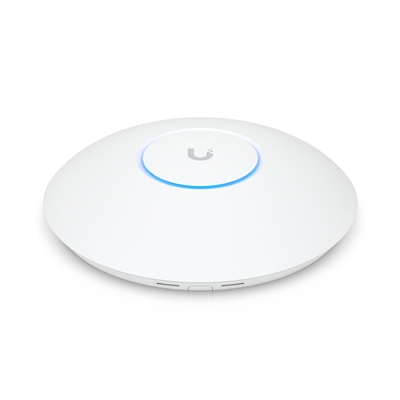

Ubiquiti UniFi U7 Pro WiFi 7 Access Point
The UniFi U7-Pro is a Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.

Key Features
WiFi 7 with 6 GHz support
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
The Ubiquiti UniFi U7 Pro WiFi 7 Access Point is a ceiling-mounted device designed for large-scale, demanding environments. It supports WiFi 7 with a tri-radio system, including 6 GHz for reduced interference.

The UniFi U7 Pro offers 6 spatial streams, which handle over 300 connected devices. The U7 Pro features a 2.5 GbE uplink and offers advanced throughput rates and antenna gains across different frequency bands. It's built with robust hardware and software, ensuring high performance and security standards.

Specifications

Mechanical

Weight & Dimensions
206 x 46 mm (8.1 x 1.8")
Weight680 g (1.5 lb)

Enclosure materials
Polycarbonate, metal

Mount material
Mounting bracket: stainless steel (SUS304)
Backing plate: galvanized steel (SGCC)

Hardware

Networking interface
(1) 1/2.5 GbE RJ45 port

Management interface
thernet

Power method
PoE+

Power supply
UniFi PoE switch

Supported voltage range
44—57V DC

Max. power consumption
21W

Max. TX power
2.4 GHz - 22 dBm
5 GHz - 26 dBm
6 GHz - 23 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - 2 x 2

Throughput rate
2.4 GHz - 688 Mbps
5 GHz - 2882 Mbps
6 GHz - 5765 Mbps

Antenna gain
2.4 GHz - 4 dBi
5 GHz - 6 Dbi
6 GHz - 5.8 dBi

LEDs
White/blue

Button
Factory reset

Mounting
Wall/ceiling (Included)

Operating temperature
-30 to 60° C (-22 to 140° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi standards
802.11a/b/g/n/ac/ax/be

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Concurrent clients
300+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 8.0.7 and later

UniFi OS
Version 3.2 and later
