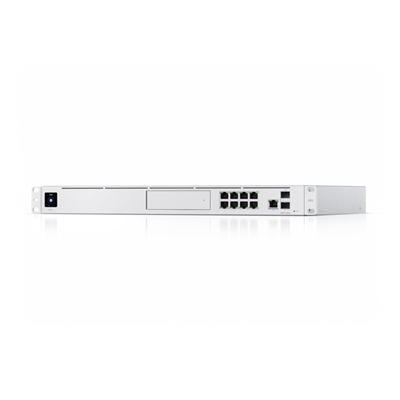

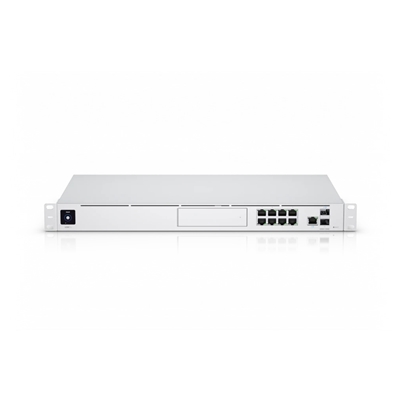

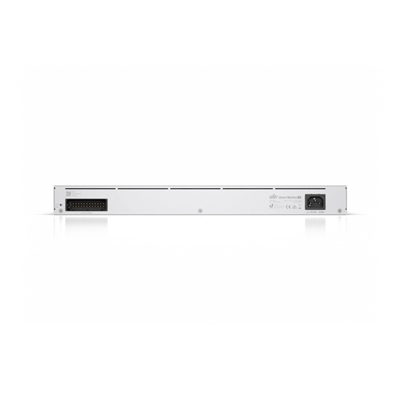

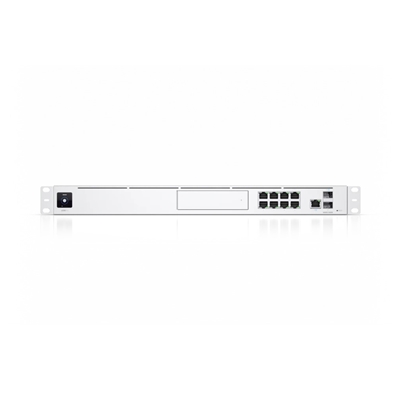

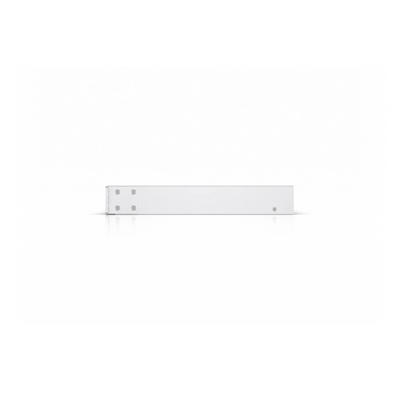

Ubiquiti UDM-PRO UniFi Dream Machine Pro - Combined Switch / Security Gateway / Controller / UniFi Protect NVR

All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks.

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.

All-in-one 1U rack appliance for small to medium sized businesses
Combines new UniFi OS with 8-port switch and security gateway
UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
Powered by fast 1.7 GHz quad-core processor

Dimensions
Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24")
Weight: 3.90 kg (8.60 lb)
With Mounting Kits:
3.99 kg (8.80 lb)

Package Contents
(2) Rackmount Brackets
(8) Bracket Screws
(4) Mounting Screws
(4) Cage Nuts
(1) Security Screw
(4) 2.5" HDD Screws
Power Cord
(4) Rubber Feet

Interfaces
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port

Management Interfaces
Ethernet In-Band
(1) Bluetooth BLE

Technical Information
IDS/IPS Throughput: 3.5 Gbps *
Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory: 4 GB DDR4
On-Board Flash Storage: 16 GB eMMC
* Measured with iPerf3.

Environment
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Humidity: 5 to 95% Noncondensing

Power
Max. Power Consumption: 33W
Voltage Range: 100 to 240VAC
Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
Redundant Power: (1) RPS DC Input
Power Supply: Internal 50W/12V
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
