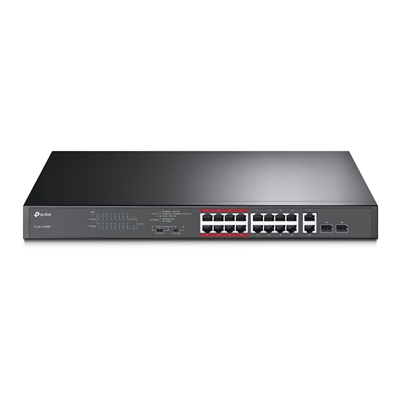

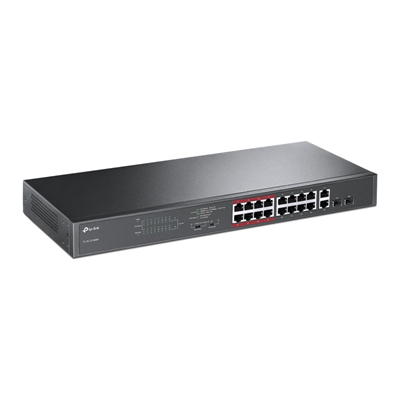

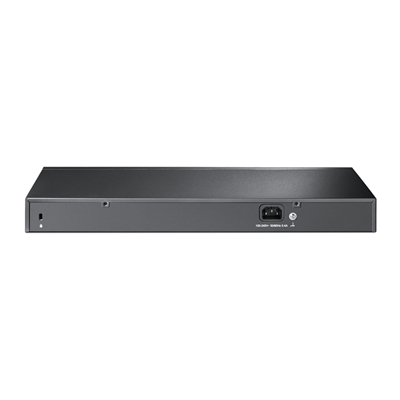

TP-Link TL-SL1218MP 16-Port Metal 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch (192W)

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.


Specifications

HARDWARE FEATURES

Interface:
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity:
2 Fans

Physical Security Lock:
Yes

Power Supply:
100-240V AC, 50/60 Hz

Backup Bandwidth:
7.2 Gbps

PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W

Mac Address Table:
8K

Dimensions ( W x D x H ):
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Max Power Consumption:
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)

Max Heat Dissipation:
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transmission Method:
Store-And-Forward

OTHERS

Certification:
CE, FCC, RoHS

Package Contents:
TL-SL1218MP, Power Cable, Installation Guide
