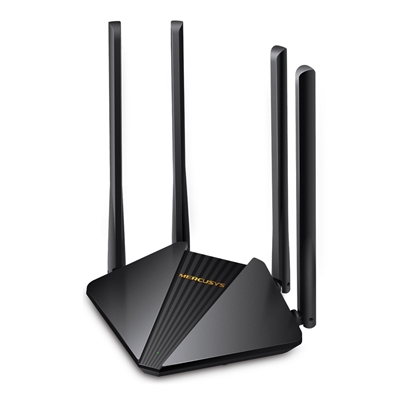

Mercusys MR30G AC1200 Wireless Dual Band Gigabit Router

AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)

Broader Coverage – 4x high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance

Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device

Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness

IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming

IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites


Specifications


Wireless

Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 GHz, 5 GHz

Signal Rate
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -71dBm
11n HT20 MCS7: -74dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK

Software

Operation Modes
Router Mode, Access Point Mode

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

Hardware

Dimensions (W x D x H)
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)

Interfaces

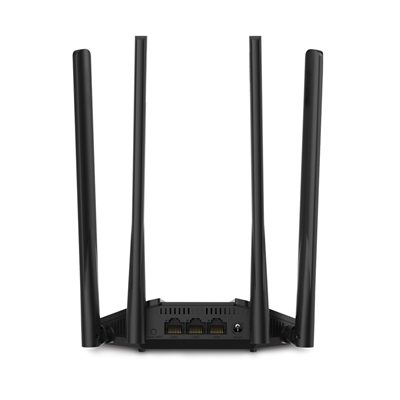

1× Gigabit WAN Port + 2× Gigabit LAN Ports

Button
WPS/Reset Button

Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents
• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
