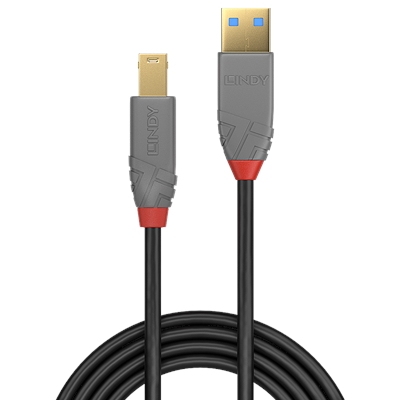

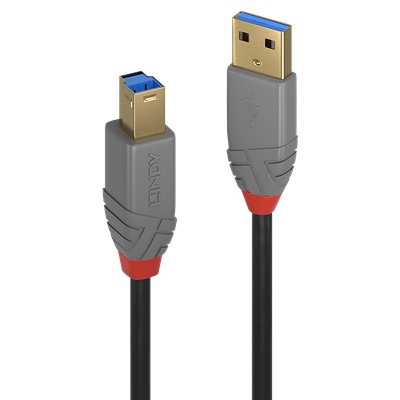

Lindy 36742 2m USB 3.2 Type A to Type B, Anthra Line

Lindy 2m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line

Key Features
Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations
SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty

The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.


Information about USB Generations
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Connectors

Connector A
USB 3.2 Type A Male

Connector B,/b>
USB 3.2 Type B Male

Housing Material
PVC

Connector Plating
Gold Plated

Pin Construction
Copper

Pin Plating
Gold Plated

Dimensions

USB A (approx.) W x D x H
15.5 x 35 x7.8 mm (0.61 x 1.38 x 0.31 in)

USB B (approx.) W x D x H
12.2 x 35 x 13.5 mm (0.48 x 1.38 x 0.53 in)

Cable Construction

Length
2 m (6.6 ft)

Standard
USB 3.2 Gen 1

Colour
Black

Type
Round

Jacket Diameter
5.5 mm (0.22 in)

Jacket Material
PVC

Conductor Material,/b>
Tinned Copper

Conductor Gauge Power
24AWG

Conductor Gauge Data
28AWG

Shielding
Aluminium Braid 85%

Specifications

Supported Bandwidth
5Gbps

Maximum Resolution
N/A

Nominal Attenuation
0.5-5m: 0.5MHz-7.5GHz

Minimum Bend Radius
48 mm (1.89 in)

Operating Temperature
0°C - 60°C (32°F - 140°F)

Storage Temperature,/b>
0°C - 60°C (32°F - 140°F)

Miscellaneous

Packaging Type
Polybag

Warranty (Years)
10

Certificated
RoHS, REACH, UL
